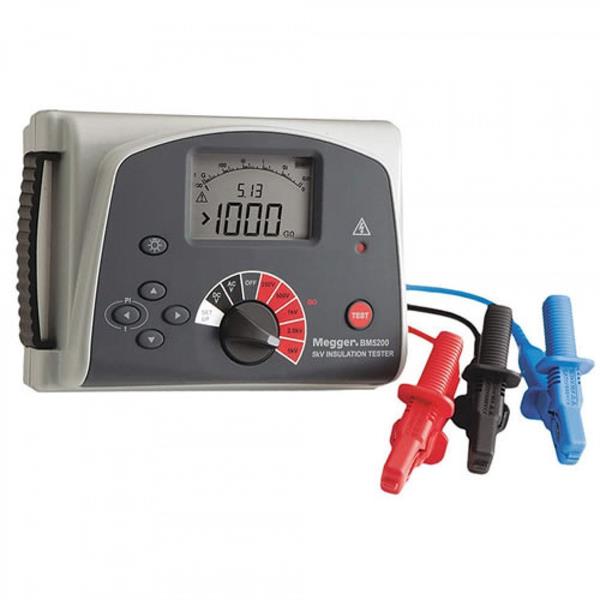

BM5200, BM5500 5kV Insulation Resistance Tester

Product Details

• 1 TΩ, 1.4 mA, 5 kV digital insulation testerwith digital and analogue display
• Five test ranges; 250 V, 500 V, 1000 V, 2500 V and 5000 V
• Insulation (InS), Polarisation Index (PI) andvariable timed test (t) modes
• Selectable DC or AC (incl. frequency) voltmeter functions
• Guard terminal to shunt surface leakage currents
• CATIII 600 V safety rating

• BM5200 : 8 x LR6/AA batteries
• BM5500 : 12 V DC 1.25 A min 220 - 240 V 50 Hz mains power
